Professional body fat analyzer/body composition analyzer/body element analyzer TM-GS6.5

  • Other

  • body composition analyzer;body fat analyzer

  • Galvanic

  • Guangdong, China

  • Tingmay

  • TM-GS6.5

  • body fat analyzer

  • AC110-220v

  • 50-60z

  • 10~40℃

  • 20KHz/50KHz/100KHz

  • 90~200cm

  • 10~200KGS

  • 10~90

  • 50000X10 and SD card

  • 320cm*240cmLCD touch screen

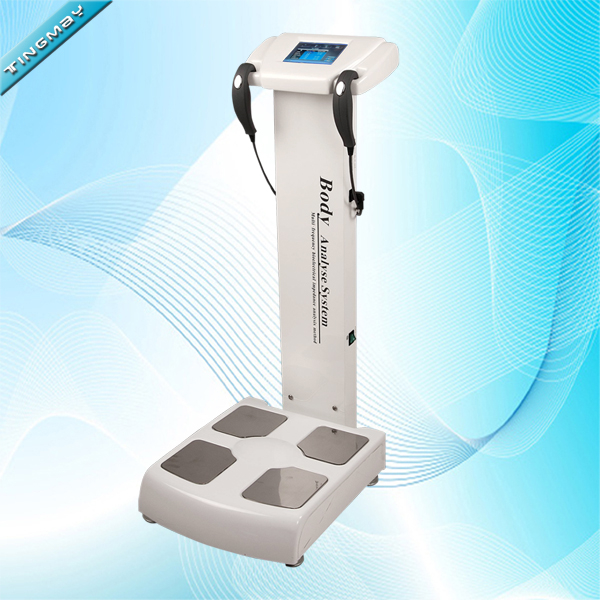

Professional body fat analyzer/body composition analyzer/body element analyzer


1.Quality Assure
2.CE;PSE ISO 9001
3.1 year warranty

4.Video and Manual guide


1. Using principles of human biotechnology.

2. 8 Point electrode contact: There are two parts of each electrode used to measure the human body's elements and also to be used to measure the elements in various parts of the body's resistance value in accurately.

3. Use of multiple regression analysis of the frequency and increase the scope of testing to enhance accuracy.

4. Implementation of intelligent control, touch operation; visualization application interface, allowing users to learn easy, safe and easy to operate.

5. Can store up to 120 complete historical records.

6. The structure of a clear, easy to install and easy to maintain.

7. The results of the analysis in order to be able to approach the output statements to clients.

Health dates:
1. Body composition: Water content, protein, inorganic salt, bone mass

2. Muscle fat analyzing: Body weight, skeleton weight, fat weight.
3. Obesity analysis: Weight, fat weight, WHR, water ratio, B. M. R
4. Obsesity diagnosis
5. Comprehensive assessment
6. Weight control
7. Exercise intensity
8. Dietary reference intake
9. Health evaluation

10. SD card to save customer’s information

11. Out-build color printer

Technical data:

Test Method

Multi-frequency bioelectrical impedance analysis (MFBIA)

Test Part

bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk,

left lower extremity, right lower extremity

Test Frequency

Three different frequency(20KHZ, 50KHZ, 100KHZ)

Electrode Method

8 point contact electrode

Computing method of body components

Do not estimate through empirical value

Output Value(25)

TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat free weight SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waisthip ratio),moisture ratio,

Obesity diagnosis, nutritional assessment, Weight

assessment, obesity assessment, Goal weight,Weight control,Fat

control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance.

Rated current

less than 180μA


Input power: AC100-240V, 50/60HZ


320*240 STN LCD Touching Screen

Operation Language

English and Multiple Language Option

Values Storage

50000×10 and SD Card unlimited expansion is available

External Storage

SD Card transfer to computer for large storage

External Interfaces

RJ-45, USB2

Printer Interfaces


IC Card System

standard IC card control


A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer

MEAS. Of Package

49CM*50CM*118CM, GW: 40KG; NW:32KG. MEAS. Of printer package: 63CM*44CM*38CM

Test time

No more than 2 minutes

Operation Environment

Temperature:10-400C(50-1040°F),humidity: 30-80%RH, 500-600hPa

Conservation Environment

Temperature: 0-400C(32-1040F),humidity: 30-80%RH, 500-600hPa

Test scope of weight

10~200Kg; Test scope of age: 10-99 ages; Test scope of height: 90-200cm

External expansion project

Ultrasonic Height Measurer(selective purchasing)

Parts Narration:

Date Printe

Correct test posture

More Pictures
